4-Drive M.2 NVMe SSD to PCIe 3.0 x4 Adapter Card
⦁ Add up to four NVMe SSDs using only one PCIe slot.

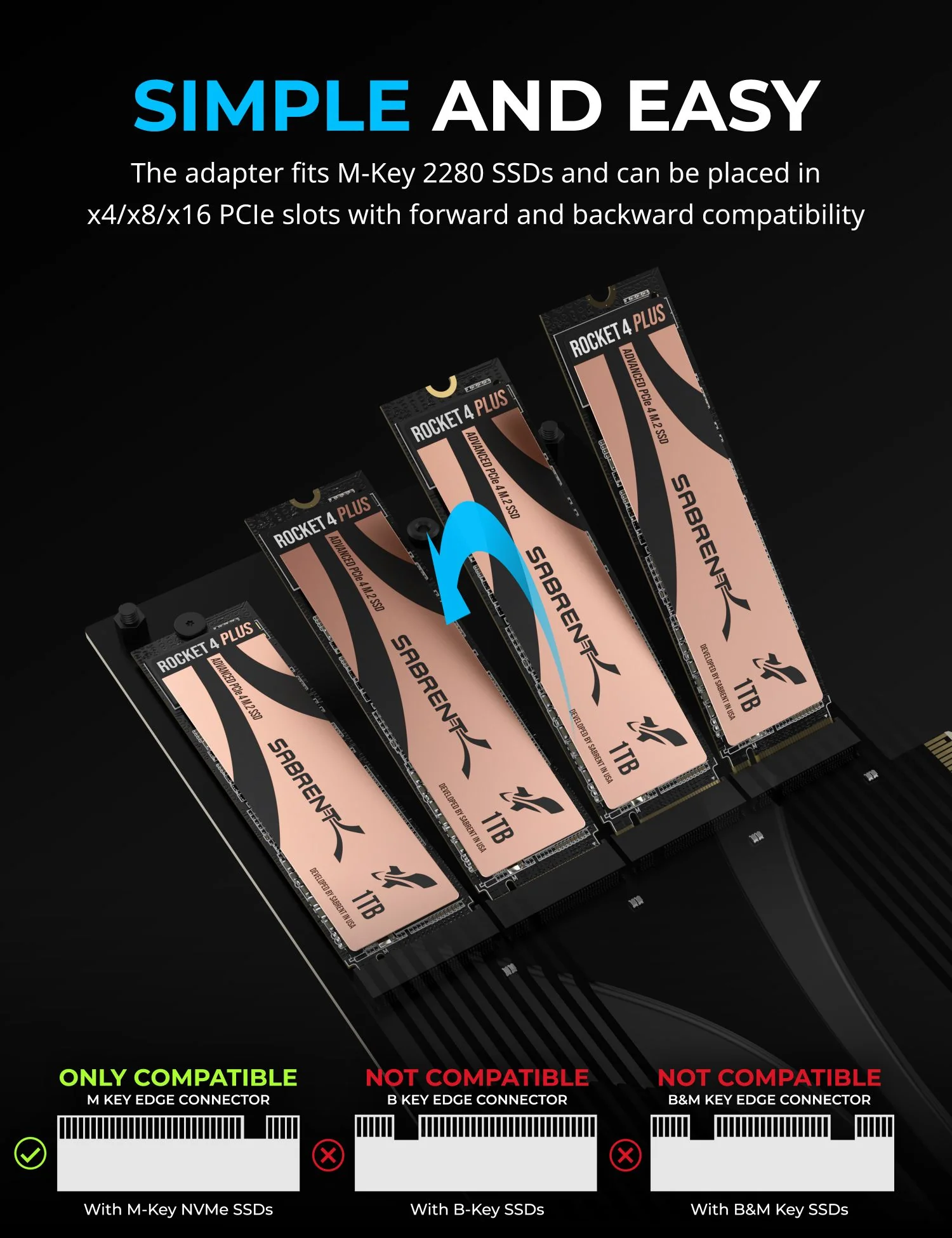

⦁ Designed for use with M.2 2280 form factor SSDs.
⦁ Compatible with PCIe 3.0 motherboards and backward compatible with PCIe 2.0 / 1.0.

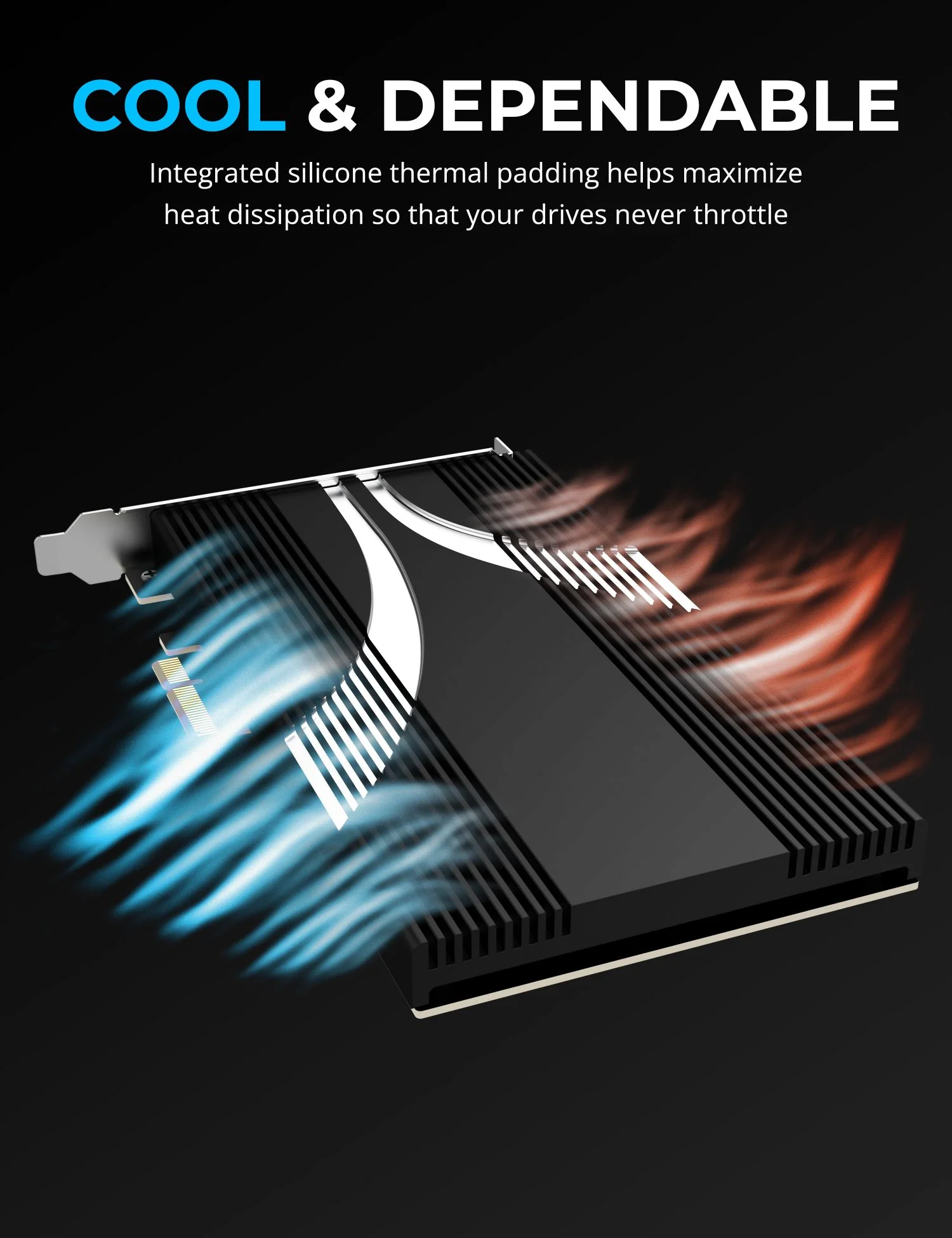

⦁ Aluminum construction for maximum heat dissipation and optimal performance.
⦁ Ample support for legacy motherboards.
⦁ Fits in PCIe x4, x8, or x16 slots, but not PCIe x1 slots.
⦁ Compliant with sleep states S3 and S4.
⦁ Active State Power Management (ASPM) protocol capable of L0s / L1 / L23 / L3 power states.
⦁ L1 sub-states added to the PCIe specification to reach SSD power consumption goals and minimize latency.
⦁ Latency Tolerance Reporting (LTR) enables lower power and longer exit latency power states.
⦁ Advanced Error Reporting (AER) capability for a more robust PCI Express implementation.
⦁ Separate Reference Clock with Independent Spread (SRIS) architecture on both upstream and downstream ports.
⦁ PCIe maximum payload size is 512 bytes.
⦁ Designed for use with M.2 2280 form factor SSDs.
⦁ Compatible with PCIe 3.0 motherboards and backward compatible with PCIe 2.0 / 1.0.
⦁ Aluminum construction for maximum heat dissipation and optimal performance.
⦁ Ample support for legacy motherboards.
⦁ Fits in PCIe x4, x8, or x16 slots, but not PCIe x1 slots.
⦁ Compliant with sleep states S3 and S4.
⦁ Active State Power Management (ASPM) protocol capable of L0s / L1 / L23 / L3 power states.
⦁ L1 sub-states added to the PCIe specification to reach SSD power consumption goals and minimize latency.
⦁ Latency Tolerance Reporting (LTR) enables lower power and longer exit latency power states.
⦁ Advanced Error Reporting (AER) capability for a more robust PCI Express implementation.
⦁ Separate Reference Clock with Independent Spread (SRIS) architecture on both upstream and downstream ports.
⦁ PCIe maximum payload size is 512 bytes.
$54.00
Original: $179.99
-70%4-Drive M.2 NVMe SSD to PCIe 3.0 x4 Adapter Card—
$179.99
$54.00
Description
⦁ Add up to four NVMe SSDs using only one PCIe slot.
⦁ Designed for use with M.2 2280 form factor SSDs.
⦁ Compatible with PCIe 3.0 motherboards and backward compatible with PCIe 2.0 / 1.0.
⦁ Aluminum construction for maximum heat dissipation and optimal performance.
⦁ Ample support for legacy motherboards.
⦁ Fits in PCIe x4, x8, or x16 slots, but not PCIe x1 slots.
⦁ Compliant with sleep states S3 and S4.
⦁ Active State Power Management (ASPM) protocol capable of L0s / L1 / L23 / L3 power states.
⦁ L1 sub-states added to the PCIe specification to reach SSD power consumption goals and minimize latency.
⦁ Latency Tolerance Reporting (LTR) enables lower power and longer exit latency power states.
⦁ Advanced Error Reporting (AER) capability for a more robust PCI Express implementation.
⦁ Separate Reference Clock with Independent Spread (SRIS) architecture on both upstream and downstream ports.
⦁ PCIe maximum payload size is 512 bytes.
⦁ Designed for use with M.2 2280 form factor SSDs.
⦁ Compatible with PCIe 3.0 motherboards and backward compatible with PCIe 2.0 / 1.0.
⦁ Aluminum construction for maximum heat dissipation and optimal performance.
⦁ Ample support for legacy motherboards.
⦁ Fits in PCIe x4, x8, or x16 slots, but not PCIe x1 slots.
⦁ Compliant with sleep states S3 and S4.
⦁ Active State Power Management (ASPM) protocol capable of L0s / L1 / L23 / L3 power states.
⦁ L1 sub-states added to the PCIe specification to reach SSD power consumption goals and minimize latency.
⦁ Latency Tolerance Reporting (LTR) enables lower power and longer exit latency power states.
⦁ Advanced Error Reporting (AER) capability for a more robust PCI Express implementation.
⦁ Separate Reference Clock with Independent Spread (SRIS) architecture on both upstream and downstream ports.
⦁ PCIe maximum payload size is 512 bytes.
